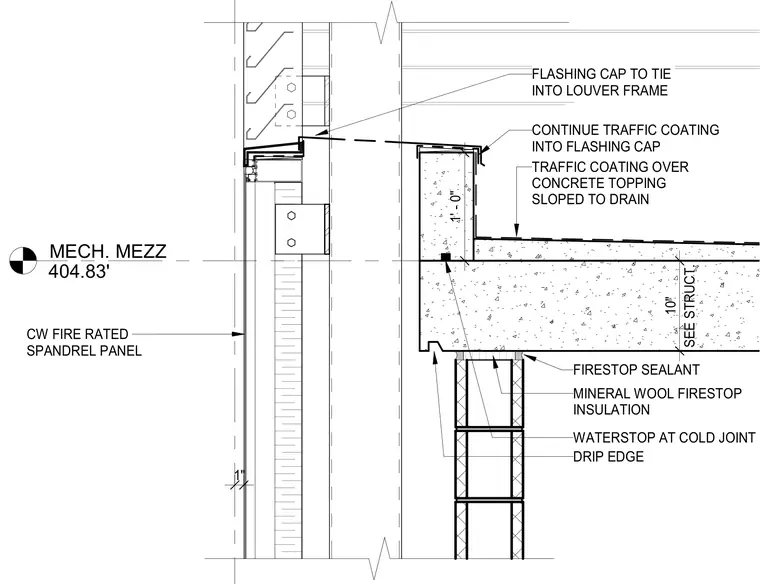

A ten-inch concrete slab bears on a masonry or concrete wall with a waterstop installed at the cold joint and a drip edge formed underneath. Mineral wool firestop insulation and firestop sealant fill the joint at the top of the wall. A traffic coating is applied over a concrete topping sloped to drain, extending into a flashing cap that ties directly into the louver frame. A fire-rated curtain wall spandrel panel aligns below the louver assembly.
MECH. MEZZ 404.83' WATERSTOP AT COLD JOINT TRAFFIC COATING OVER CONCRETE TOPPING SLOPED TO DRAIN CW FIRE RATED SPANDREL PANEL DRIP EDGE CONTINUE TRAFFIC COATING INTO FLASHING CAP FLASHING CAP TO TIE INTO LOUVER FRAME SEE STRUCT. 10" 1' - 0" 1" MINERAL WOOL FIRESTOP INSULATION FIRESTOP SEALANT
