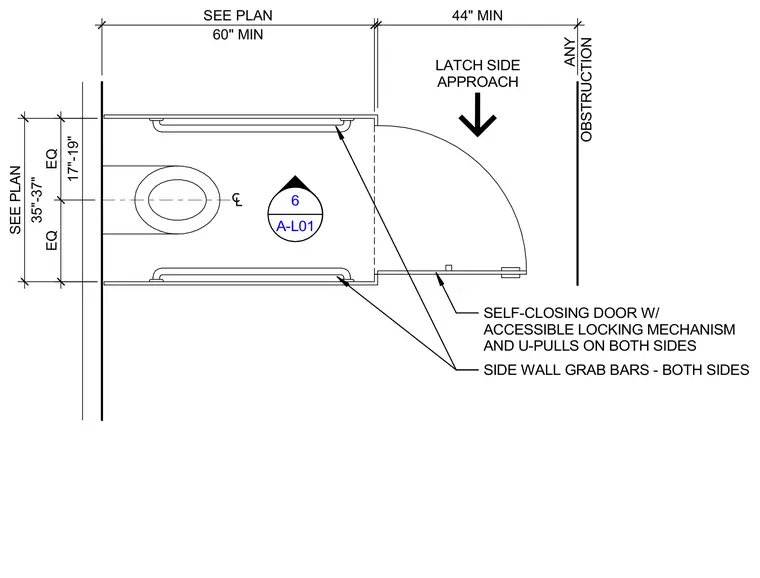

An ambulatory accessible toilet compartment layout shows a sixty-inch minimum clear width and a thirty-five to thirty-seven inch centerline spacing for side wall grab bars on both sides. The compartment features a self-closing door equipped with an accessible locking mechanism and U-pulls on both sides. A forty-four inch minimum clearance is maintained at the latch side approach with no obstructions. The water closet is centered within the stall with equal spacing on either side.
6 A-L01 EQ 17"-19" EQ 35"-37" SEE PLAN SELF-CLOSING DOOR W/ ACCESSIBLE LOCKING MECHANISM AND U-PULLS ON BOTH SIDES 60" MIN SEE PLAN SIDE WALL GRAB BARS - BOTH SIDES 44" MIN ANY OBSTRUCTION LATCH SIDE APPROACH
