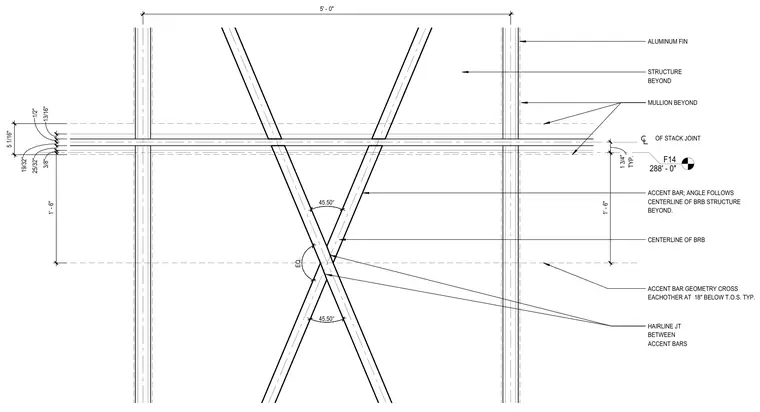

This elevation detail shows crossing accent bars aligned with the centerline of the buckling-restrained braced frame structure beyond. A stack joint runs horizontally with a hairline joint between accent bars, located eighteen inches below the typical top of steel. Vertical mullions and an aluminum fin are positioned in the background, set at a five-foot module. Precise dimensions and forty-five and a half degree intersection angles govern the alignment of the accent bars relative to the structural grid.
F14 288' - 0" OF STACK JOINT ALUMINUM FIN STRUCTURE BEYOND ACCENT BAR; ANGLE FOLLOWS CENTERLINE OF BRB STRUCTURE BEYOND. HAIRLINE JT BETWEEN ACCENT BARS T Y P . 1 3 / 4 " 1 3 / 1 6 " 1 / 2 " 1 9 / 3 2 " 2 5 / 3 2 " 3 / 8 " 1 ' - 6 " MULLION BEYOND 5 ' - 0 " 5 1 / 1 6 " ACCENT BAR GEOMETRY CROSS EACHOTHER AT 18" BELOW T.O.S. TYP. E Q . 1 ' - 6 " 4 5 . 5 0 ° 4 5 . 5 0 ° CENTERLINE OF BRB
