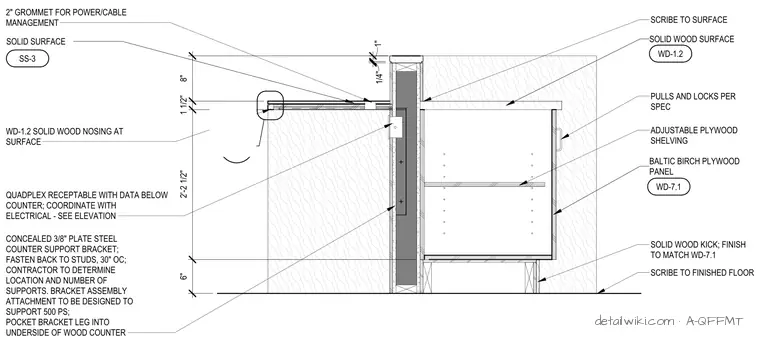

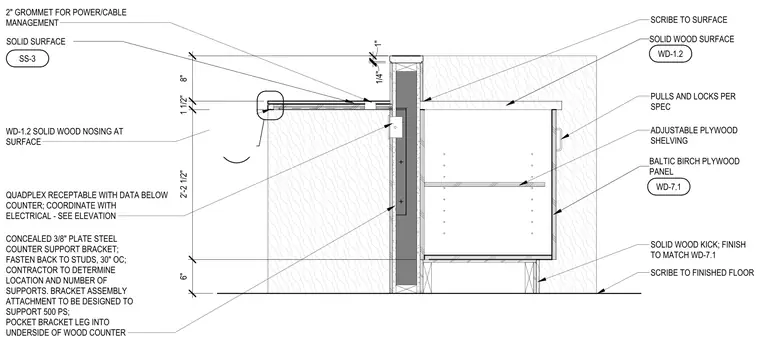

This assembly consists of a solid surface countertop with a solid wood nosing, supported by concealed three-eighths inch plate steel brackets fastened to wall studs at thirty inches on center. The bracket leg is pocketed into the underside of the wood counter, which is designed to support five hundred pounds. A two-inch grommet is provided for power and cable management, with a quadplex receptacle and data port located below the counter. The cabinetry features Baltic birch plywood panels, adjustable plywood shelving, and a solid wood kick plate scribed to the finished floor. The rear surface is finished with a solid wood panel scribed to the wall surface.
