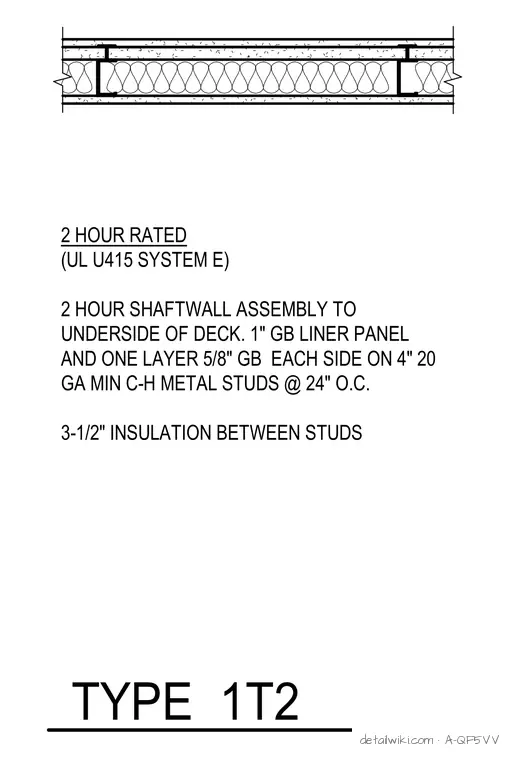

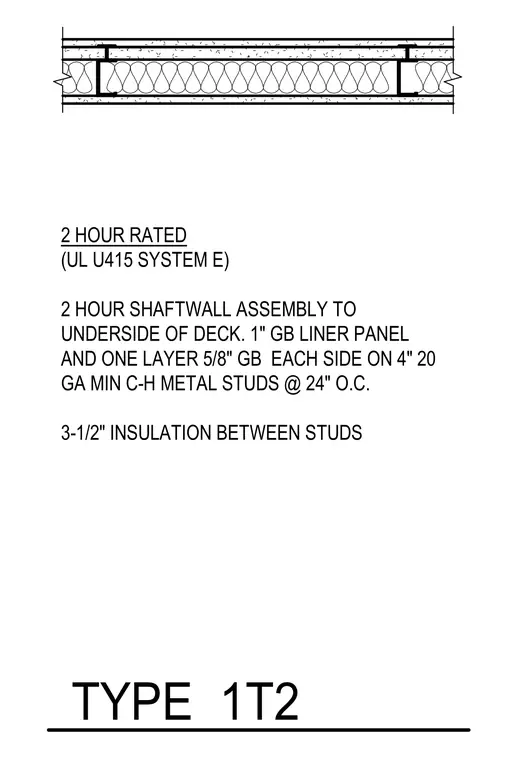

This two-hour rated shaftwall assembly connects to the underside of the deck using four-inch twenty-gauge minimum C-H metal studs spaced at twenty-four inches on center. The assembly incorporates a one-inch gypsum board liner panel with one layer of five-eighths-inch gypsum board on each side. Three-and-a-half-inch insulation is installed between the studs. The system complies with Underwriters Laboratories specification UL U415 System E.
2 HOUR RATED (UL U415 SYSTEM E) 2 HOUR SHAFTWALL ASSEMBLY TO UNDERSIDE OF DECK. 1" GB LINER PANEL AND ONE LAYER 5/8" GB EACH SIDE ON 4" 20 GA MIN C-H METAL STUDS @ 24" O.C. 3-1/2" INSULATION BETWEEN STUDS TYPE 1T2
