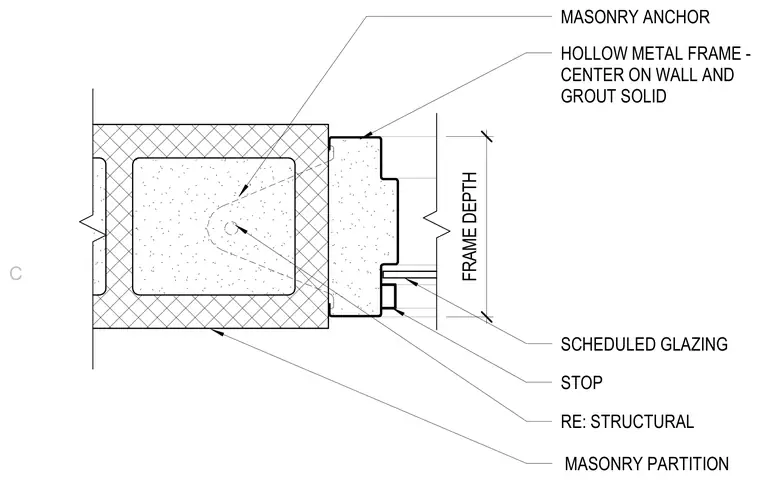

A hollow metal frame is centered on a solid masonry partition and grouted solid for rigidity. The frame is secured to the wall using masonry anchors embedded in the core. A scheduled glazing stop is integrated with the frame assembly, with dimensions governed by the frame depth. The surrounding masonry partition is coordinated per structural drawings.
HOLLOW METAL FRAME - CENTER ON WALL AND GROUT SOLID MASONRY ANCHOR FRAME DEPTH SCHEDULED GLAZING STOP RE: STRUCTURAL MASONRY PARTITION C
