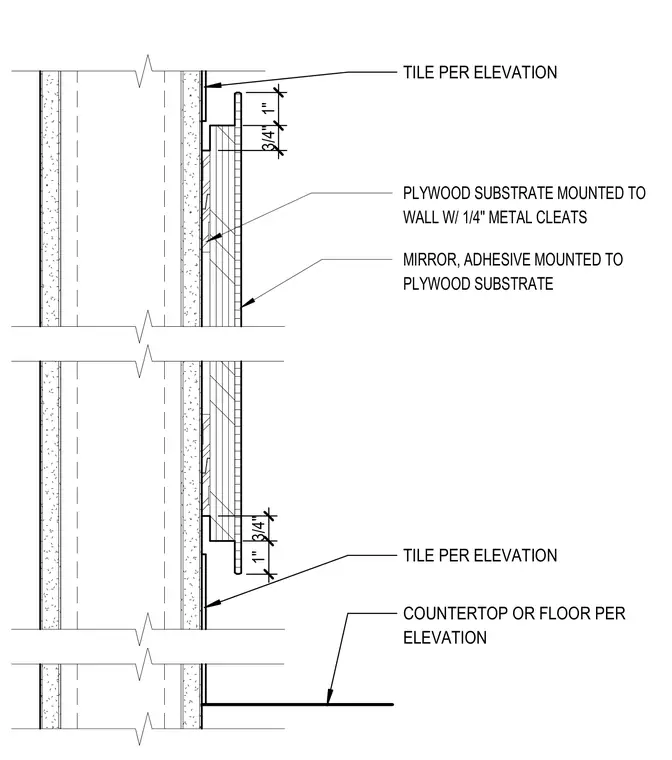

An adhesive-mounted mirror is secured to a plywood substrate, which is mounted to the wall using quarter-inch metal cleats. The assembly sits between finish tile per elevation above and below, extending down toward a countertop or floor per elevation. Dimensional clearances of three-quarters of an inch and one inch frame the upper and lower edges of the mirror panel.
3 / 4 " 1 " 3 / 4 " 1 " M I R R O R , A D H E S I V E M O U N T E D T O P L Y W O O D S U B S T R A T E P L Y W O O D S U B S T R A T E M O U N T E D T O W A L L W / 1 / 4 " M E T A L C L E A T S COUNTERTOP OR FLOOR PER ELEVATION TILE PER ELEVATION TILE PER ELEVATION
