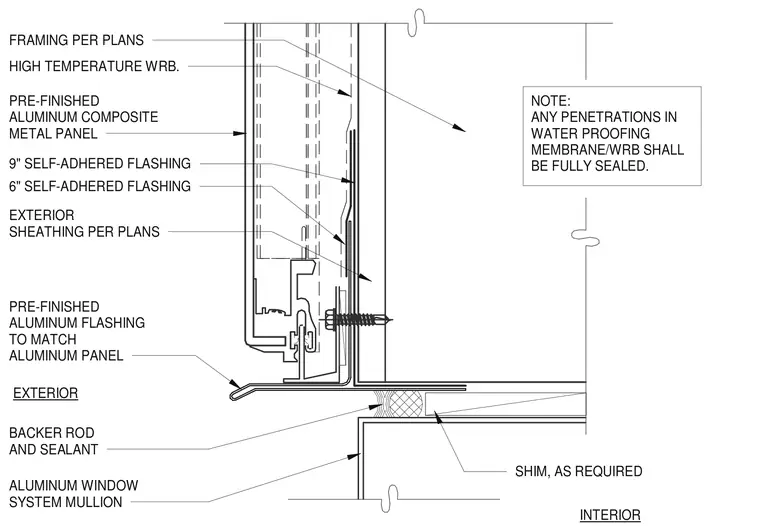

Window head junction where an aluminum composite metal panel meets an aluminum window system mullion. Pre-finished aluminum flashing matches the metal panel and ties into layers of six-inch and nine-inch self-adhered flashing over exterior sheathing and framing. A high-temperature weather-resistive barrier wraps the exterior framing, with a note requiring full sealing of any penetrations in the waterproofing membrane. A backer rod and sealant close the joint at the exterior face above the window mullion, and shims are provided as required.
NOTE: ANY PENETRATIONS IN WATER PROOFING MEMBRANE/WRB SHALL BE FULLY SEALED. PRE-FINISHED ALUMINUM FLASHING TO MATCH ALUMINUM PANEL ALUMINUM WINDOW SYSTEM MULLION SHIM, AS REQUIRED BACKER ROD AND SEALANT FRAMING PER PLANS EXTERIOR SHEATHING PER PLANS 9" SELF-ADHERED FLASHING INTERIOR EXTERIOR HIGH TEMPERATURE WRB. PRE-FINISHED ALUMINUM COMPOSITE METAL PANEL 6" SELF-ADHERED FLASHING
