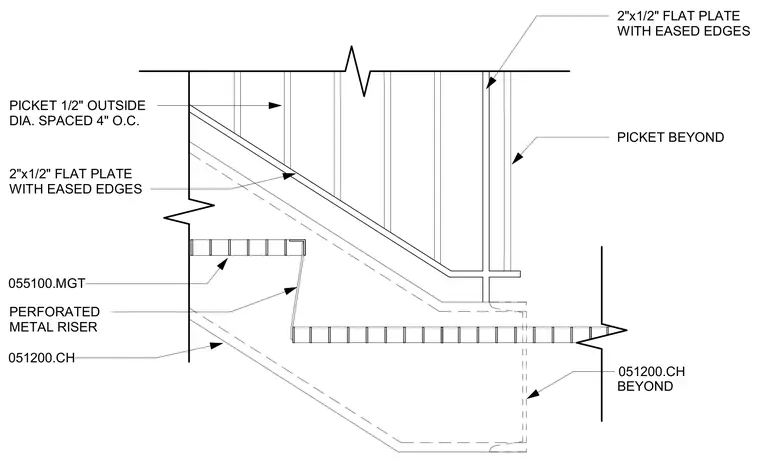

An intermediate stair landing transitions to the base of a stair run utilizing structural steel channel stringers. A perforated metal riser connects between stair treads. Guardrail construction consists of a 2"x1/2" flat plate top rail with eased edges and 1/2" outside diameter pickets spaced at 4 inches on center.
2"x1/2" FLAT PLATE WITH EASED EDGES 051200.CH 051200.CH BEYOND 2"x1/2" FLAT PLATE WITH EASED EDGES PICKET 1/2" OUTSIDE DIA. SPACED 4" O.C. 055100.MGT PERFORATED METAL RISER PICKET BEYOND
