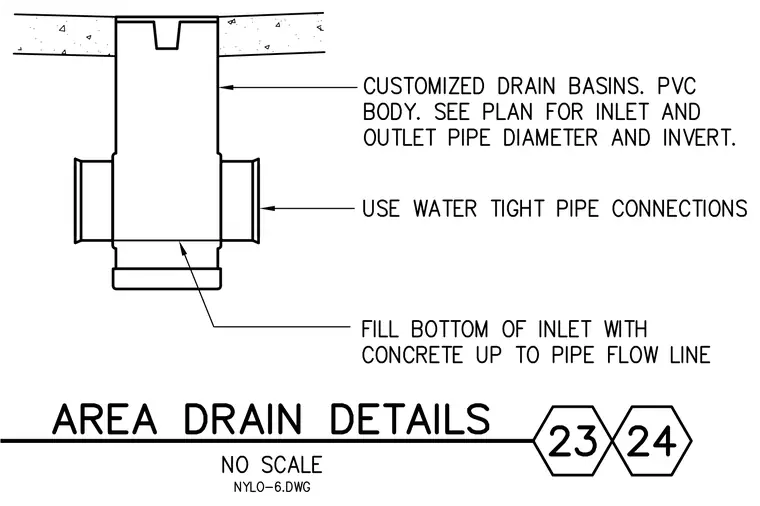

A customized drain basin features a PVC body set beneath a grate with inlet and outlet pipe diameters and inverts sized per plan. Pipe connections require watertight seals at all lateral entries. The bottom of the inlet is filled with concrete up to the pipe flow line.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
