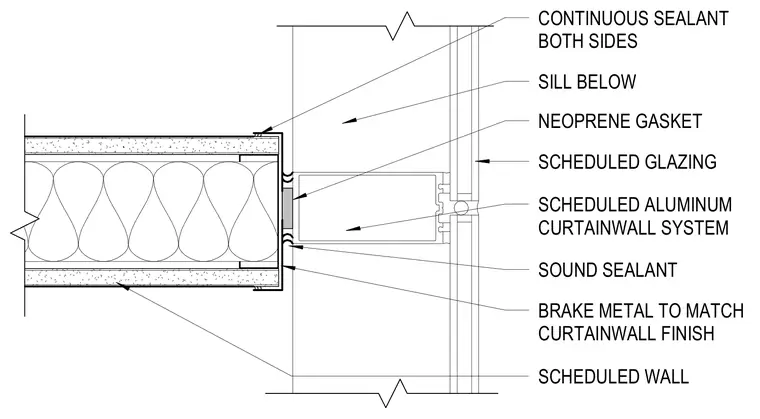

An aluminum curtain wall system intersects a scheduled wall with a brake metal closure finished to match the curtain wall. Continuous sealant is applied on both sides at the sill below. A neoprene gasket and sound sealant seal the connection between the wall and the scheduled glazing frame.
SCHEDULED WALL SILL BELOW CONTINUOUS SEALANT BOTH SIDES BRAKE METAL TO MATCH CURTAINWALL FINISH SCHEDULED ALUMINUM CURTAINWALL SYSTEM SOUND SEALANT NEOPRENE GASKET SCHEDULED GLAZING
