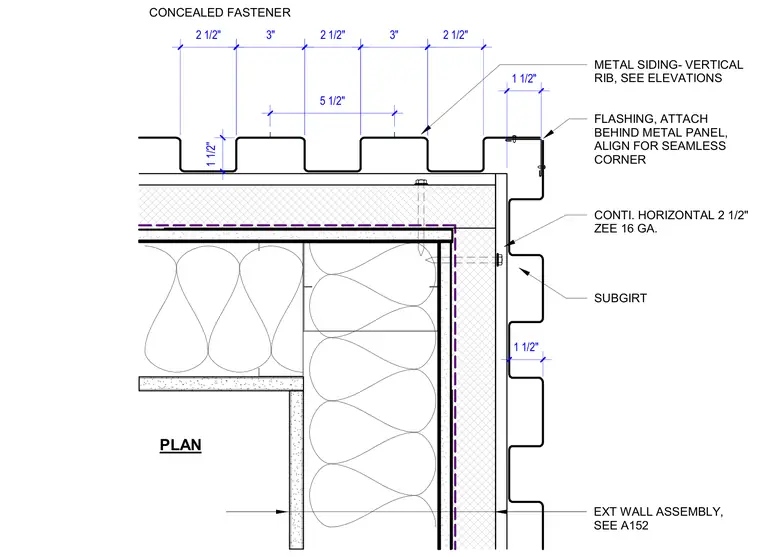

Vertical-rib metal siding panels wrap an exterior wall corner over continuous horizontal 2 1/2-inch 16-gauge zee subgirts. Flashing attaches behind the metal panels and aligns to create a seamless corner detail. Concealed fasteners secure the panels and subgirts across the insulated exterior wall assembly.
PLAN SUBGIRT METAL SIDING- VERTICAL RIB, SEE ELEVATIONS EXT WALL ASSEMBLY, SEE A152 FLASHING, ATTACH BEHIND METAL PANEL, ALIGN FOR SEAMLESS CORNER 1 1/2" CONTI. HORIZONTAL 2 1/2" ZEE 16 GA. 5 1/2" 1 1/2" 3" 2 1/2" 2 1/2" 2 1/2" 3" CONCEALED FASTENER 1 1/2"
