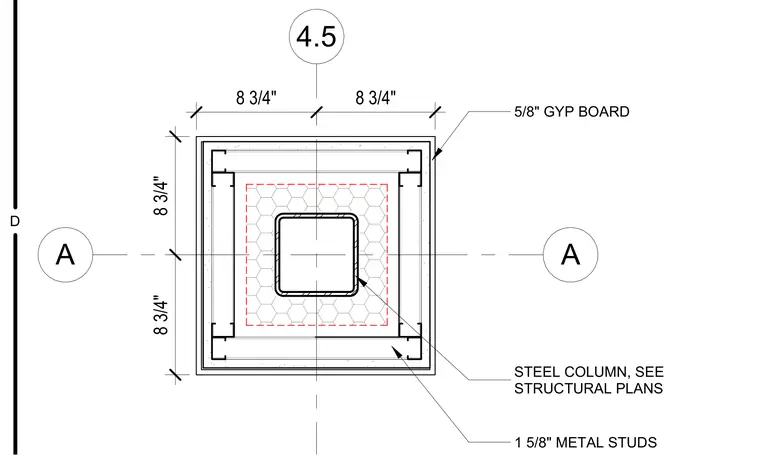

A structural steel column is surrounded by a framed chase constructed with 1-5/8 inch metal studs. The exterior of the stud framing is finished with 5/8 inch gypsum board on all sides. The core area surrounding the steel column is hatched to indicate fill or insulation per structural plans.
4.5 A A 1 5/8" METAL STUDS 5/8" GYP BOARD STEEL COLUMN, SEE STRUCTURAL PLANS 8 3/4" 8 3/4" 8 3/4" 8 3/4" D
