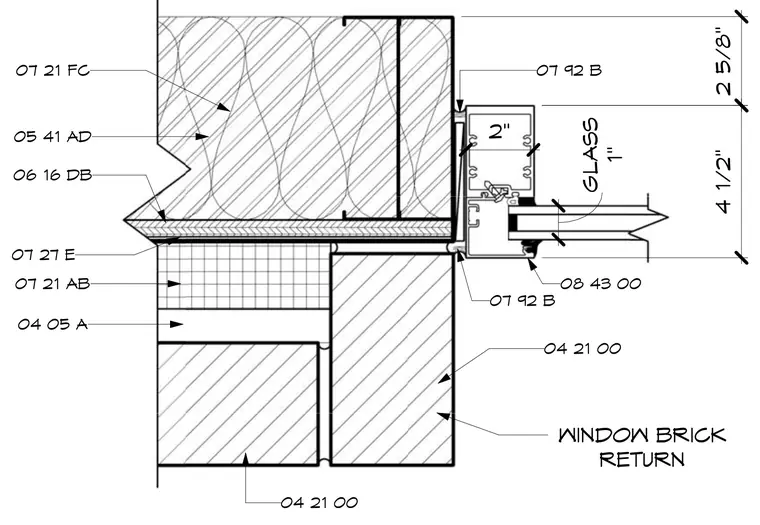

A window head condition interfaces with a brick masonry return. The assembly incorporates an aluminum storefront frame glazed with a 1-inch glass unit, sealed at the perimeter with joint sealant. The head detail ties into a backup wall comprising metal stud framing with sheathing, air and vapor barrier membranes, and exterior insulation. Below the head condition, brick masonry veneer with a cavity space forms the exterior finish, returning into the window opening.
4 1/2" 04 21 00 04 21 00 04 05 A 07 21 AB 07 27 E 06 16 DB 05 41 AD 07 92 B 08 43 00 07 92 B GLASS 1" 2" WINDOW BRICK RETURN 2 5/8" 07 21 FC
