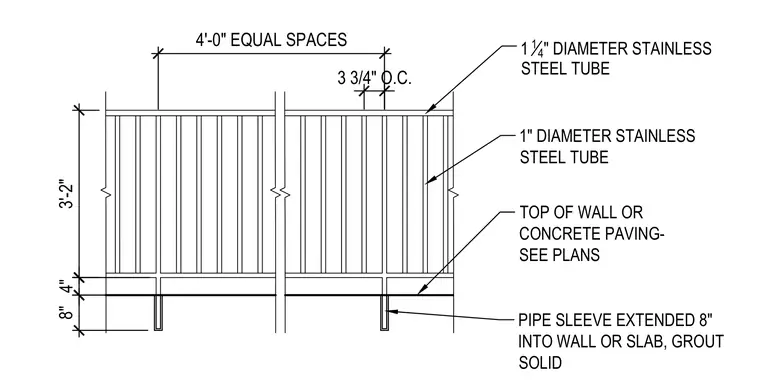

This stainless steel guardrail assembly features a 1-1/4 inch diameter top rail and 1 inch diameter vertical picket tubes spaced at 3-3/4 inches on center. The guardrail stands at a height of 3 feet 2 inches with posts set at 4 feet equal spaces. The support posts extend downward into pipe sleeves that reach 8 inches into the concrete wall or slab and are grouted solid.
8" 4" 3'-2" 3 3/4" O.C. 4'-0" EQUAL SPACES 1 14 " DIAMETER STAINLESS STEEL TUBE 1" DIAMETER STAINLESS STEEL TUBE TOP OF WALL OR CONCRETE PAVING- SEE PLANS PIPE SLEEVE EXTENDED 8" INTO WALL OR SLAB, GROUT SOLID
