Architectural · A-QD2BM

Interior Aluminum Door Frame Jamb

Materials

Elements

About this detail

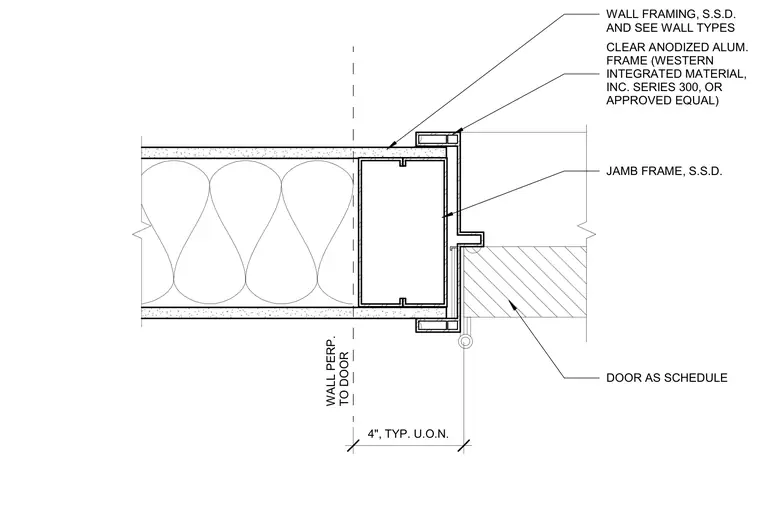

An interior aluminum door frame jamb connects to adjacent wall framing and gypsum board partitions. A clear anodized aluminum frame, specified as Western Integrated Material Series 300 or approved equal, is anchored to structural steel stud wall framing. The door leaf is installed per the door schedule. Typical dimensions and wall perpendicular relationships are detailed for standard interior openings.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
