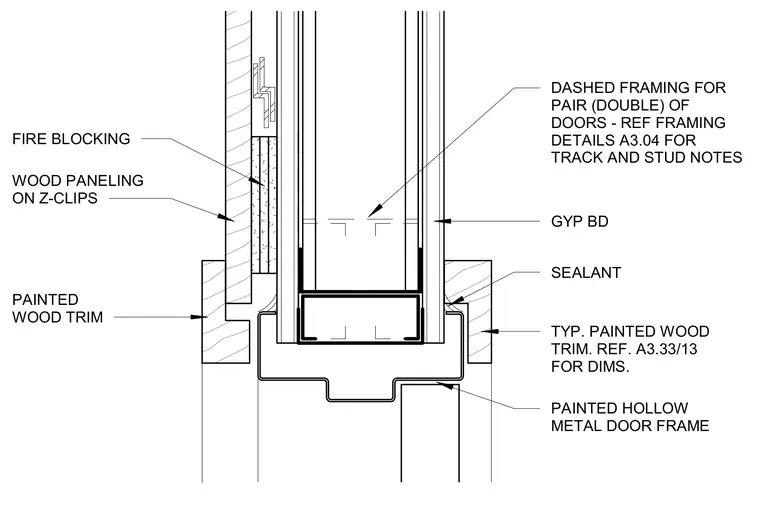

A painted hollow metal door frame supports a gypsum board partition with fire blocking above. Wood paneling is mounted on Z-clips along the face, finished with painted wood trim at the head. Sealant is applied between the trim and the frame assembly. Dashed framing indicates a double door condition.
WOOD PANELING ON Z-CLIPS PAINTED HOLLOW METAL DOOR FRAME SEALANT GYP BD TYP. PAINTED WOOD TRIM. REF. A3.33/13 FOR DIMS. PAINTED WOOD TRIM DASHED FRAMING FOR PAIR (DOUBLE) OF DOORS - REF FRAMING DETAILS A3.04 FOR TRACK AND STUD NOTES FIRE BLOCKING
