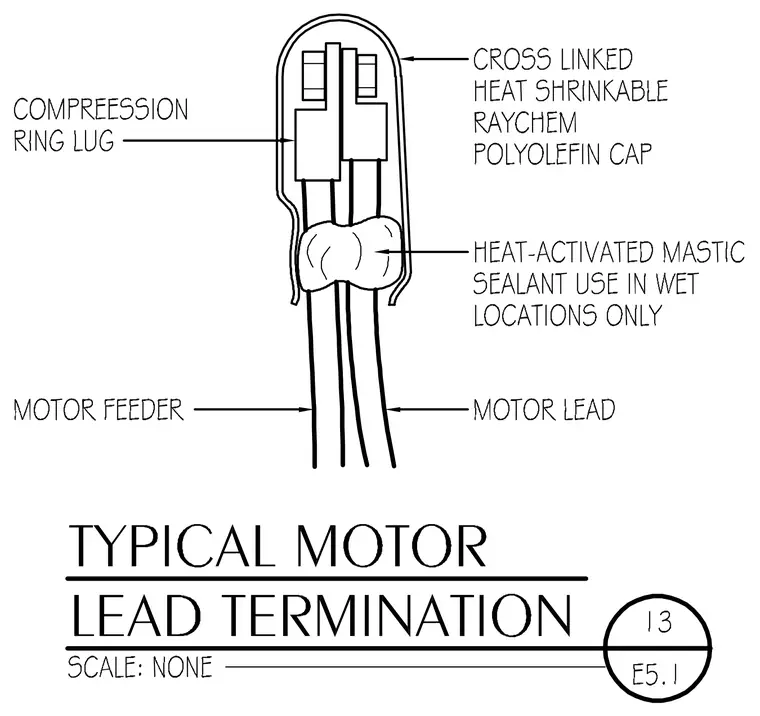

Motor feeders connect to motor leads using compression ring lugs housed within a cross linked heat shrinkable Raychem polyolefin cap. A heat-activated mastic sealant is applied at the base for wet locations only.
