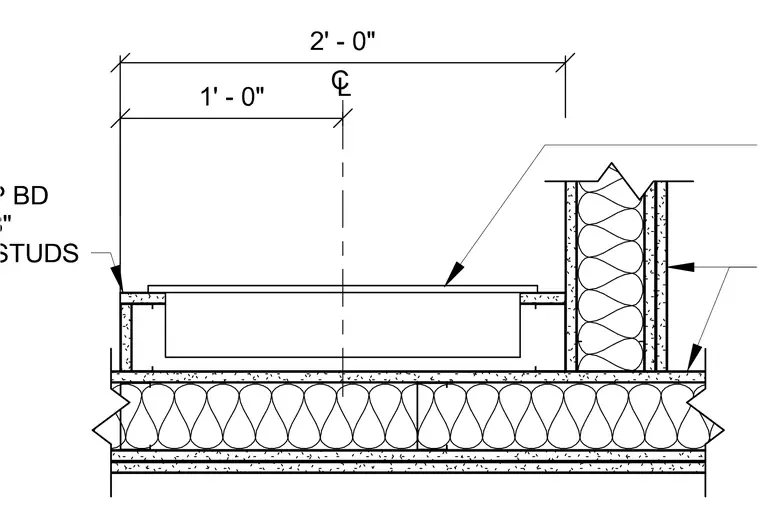

An expansion joint cover plate spans an opening framed by metal studs and gypsum board partitions. The assembly rests over a continuous insulated floor and ceiling construction with layered gypsum board surfaces. Dimension lines reference the centerline at two feet zero inches overall, with a one foot zero inch offset to the partition framing.
