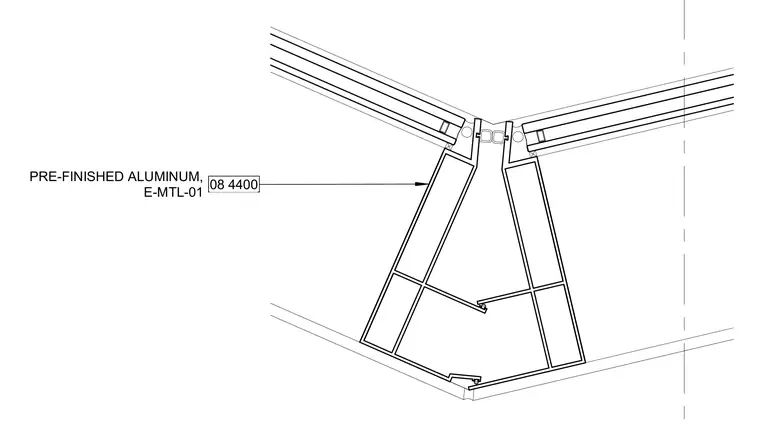

Pre-finished aluminum corner mullion assembly featuring extruded profiles designated as 08 4400 E-MTL-01. The multi-chamber aluminum sections form an outside corner transition with integrated thermal breaks and glazing pockets. Gaskets and sealants provide weather sealing along the exterior joinery.
