A metal sign mounts to a 1-3/4 inch minimum standard galvanized pipe post conforming to ASTM A53, finished with a threaded or welded cap at the top. The sign secures to the post via two 1/8 inch thick galvanized brackets clamped with 1/4 inch diameter galvanized U-bolts and nuts. The metal sign itself attaches to each bracket using 3/16 inch diameter round head galvanized bolts with galvanized washers, nuts, and 1/8 inch thick fiber washers placed between the sign and bracket.

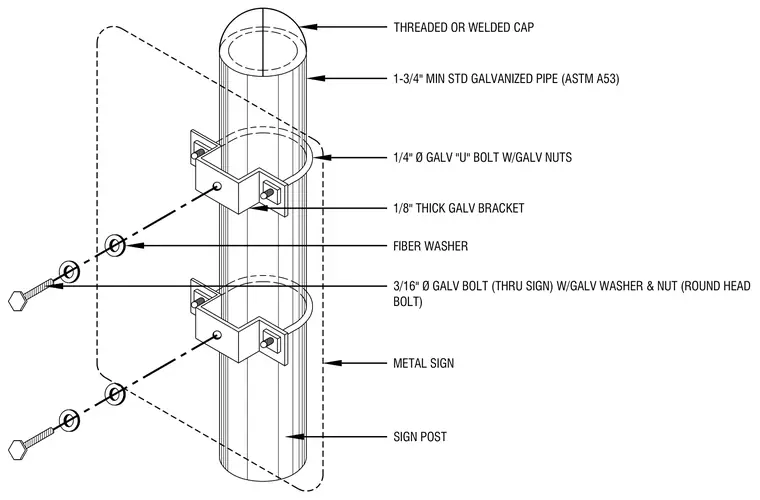

SIGN POST METAL SIGN FIBER WASHER 1/8" THICK GALV BRACKET 1/4" Ø GALV "U" BOLT W/GALV NUTS 1-3/4" MIN STD GALVANIZED PIPE (ASTM A53) THREADED OR WELDED CAP 3/16" Ø GALV BOLT (THRU SIGN) W/GALV WASHER & NUT (ROUND HEAD BOLT)
