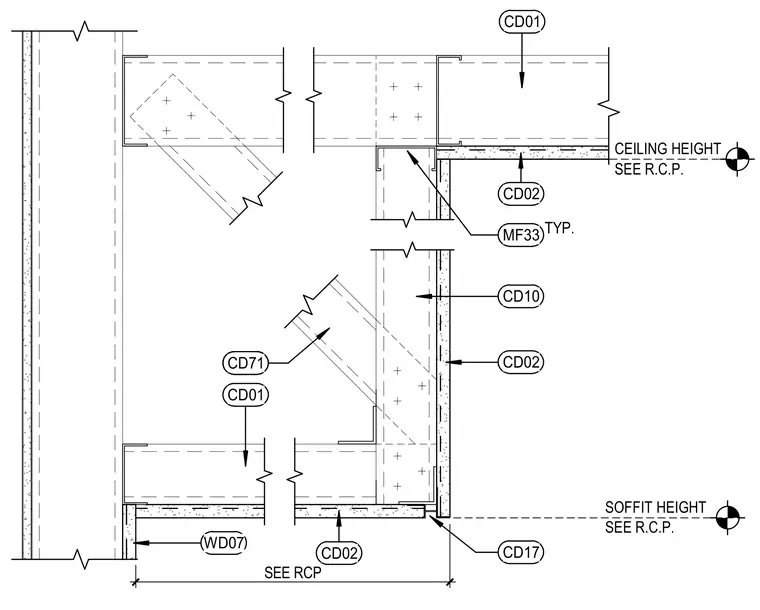

This plaster ceiling and soffit detail shows light-gauge metal framing suspended and braced with diagonal studs. The plaster finish is applied over gypsum board substrates or lath supported by metal framing members. Heights are coordinated per the reflected ceiling plan.
SEE R.C.P. SOFFIT HEIGHT CD71 CD01 CD10 SEE R.C.P. CEILING HEIGHT CD02 CD02 WD07 CD01 CD02 TYP. MF33 SEE RCP CD17
