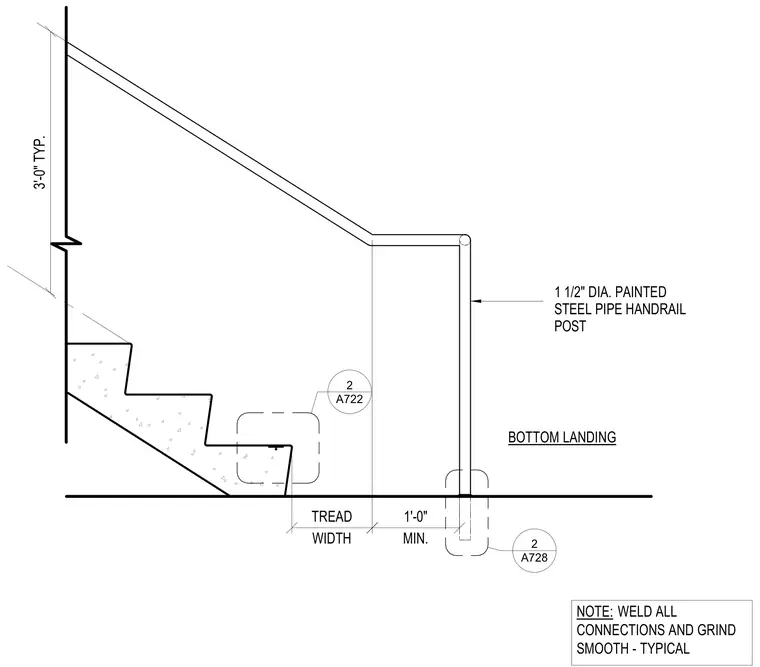

A one-and-a-half-inch diameter painted steel pipe handrail post connects to the bottom concrete landing with a minimum one-foot-zero-inch clearance. All connections are welded and ground smooth typically. The stair tread features a typical three-foot width.
1'-0" MIN. TREAD WIDTH 3'-0" TYP. BOTTOM LANDING NOTE: WELD ALL CONNECTIONS AND GRIND SMOOTH - TYPICAL 1 1/2" DIA. PAINTED STEEL PIPE HANDRAIL POST A728 2 A722 2
