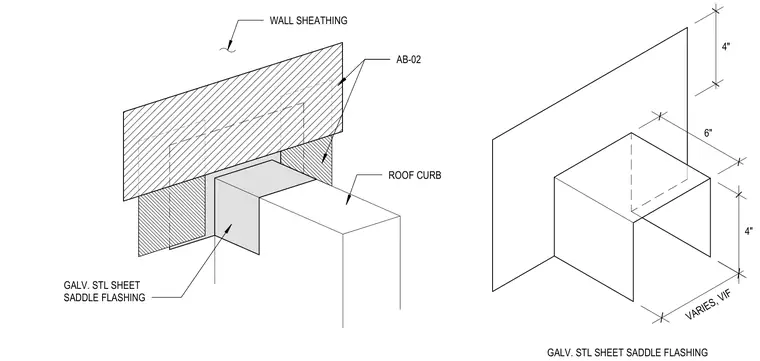

A galvanized steel sheet saddle flashing fits over a roof curb and integrates with the wall sheathing and waterproofing membrane. The assembly includes dimensional controls of 4 inches, 6 inches, and 4 inches, with variable dimensions verified in the field. The galvanized steel saddle flashing protects the curb penetration against water infiltration.
VARIES, VIF 4" 6" 4" WALL SHEATHING AB-02 ROOF CURB GALV. STL SHEET SADDLE FLASHING GALV. STL SHEET SADDLE FLASHING
