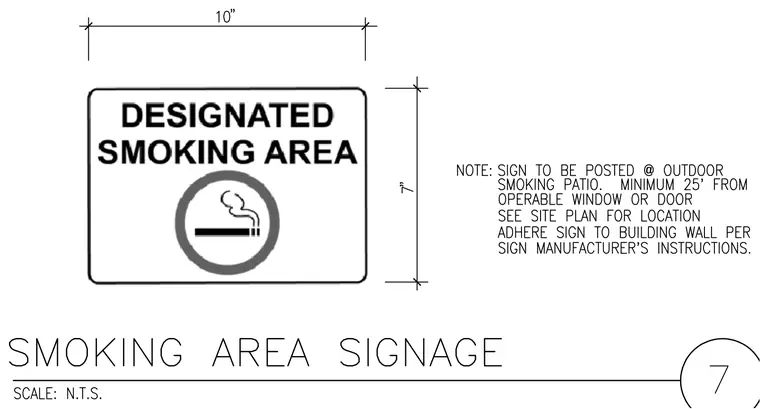

A designated smoking area sign measuring ten inches wide by seven inches high includes text and a smoking prohibition symbol. The sign is to be posted at an outdoor smoking patio, maintaining a minimum distance of twenty-five feet from any operable window or door. Exact placement location is referenced on the site plan. The sign adheres to the building wall in accordance with the sign manufacturer's instructions.
