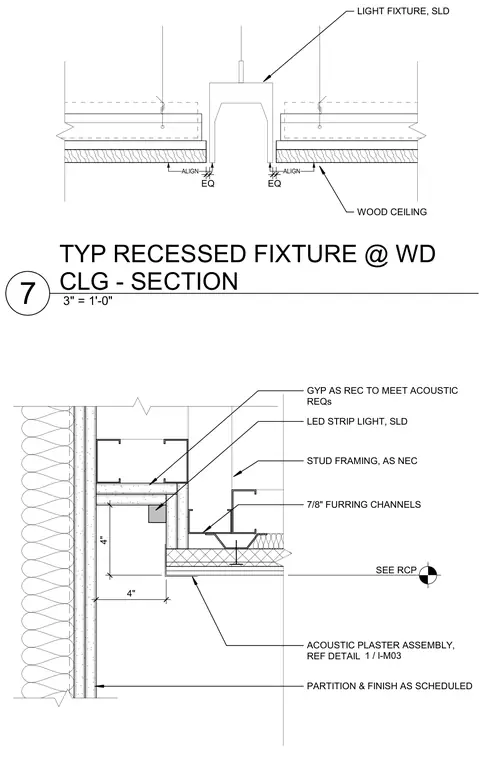

A recessed light fixture integrates into a solid wood ceiling system adjacent to an acoustic plaster ceiling and partition assembly. The solid wood ceiling utilizes furring channels and stud framing as necessary, with gypsum board applied to meet acoustic requirements. An LED strip light is positioned within the recessed ceiling pocket. The partition features specified framing and finishes, aligning with the acoustic plaster assembly referenced in the design documents.
EQ EQ ALIGN ALIGN LIGHT FIXTURE, SLD WOOD CEILING SEE RCP ACOUSTIC PLASTER ASSEMBLY, REF DETAIL PARTITION & FINISH AS SCHEDULED 4" 7/8" FURRING CHANNELS STUD FRAMING, AS NEC 4" 1 / I-M03 LED STRIP LIGHT, SLD GYP AS REC TO MEET ACOUSTIC REQs 3" = 1'-0" 7 TYP RECESSED FIXTURE @ WD CLG - SECTION
