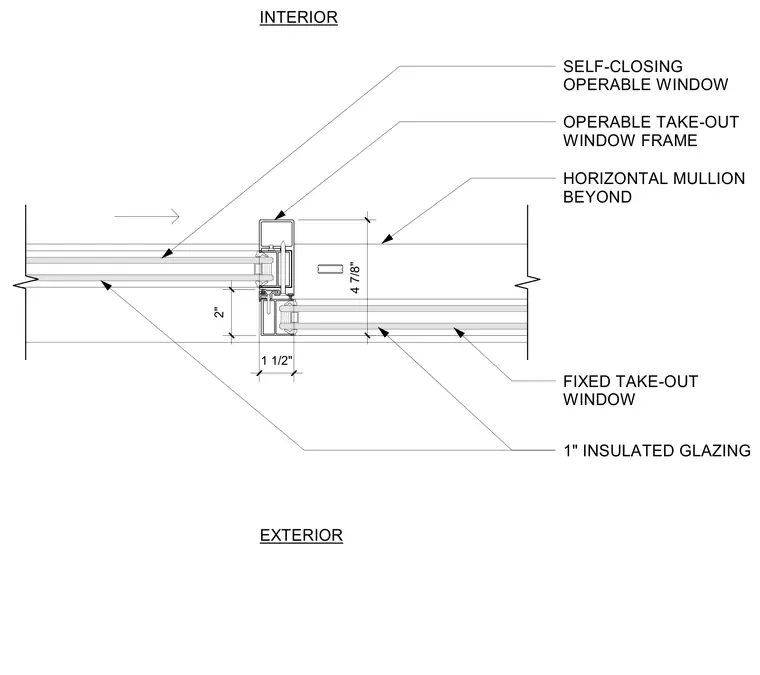

A jamb condition for a take-out window assembly separates interior and exterior spaces. The system incorporates an operable take-out window frame fitted with a self-closing operable window and a fixed take-out window. Both glazing units feature 1-inch insulated glazing. Dimensions locate the window frame components at 1 1/2 inches, 2 inches, and 4 7/8 inches. A horizontal mullion is visible beyond the plane of the section.
INTERIOR EXTERIOR HORIZONTAL MULLION BEYOND FIXED TAKE-OUT WINDOW SELF-CLOSING OPERABLE WINDOW OPERABLE TAKE-OUT WINDOW FRAME 1" INSULATED GLAZING 1 1/2" 4 7/8" 2"
