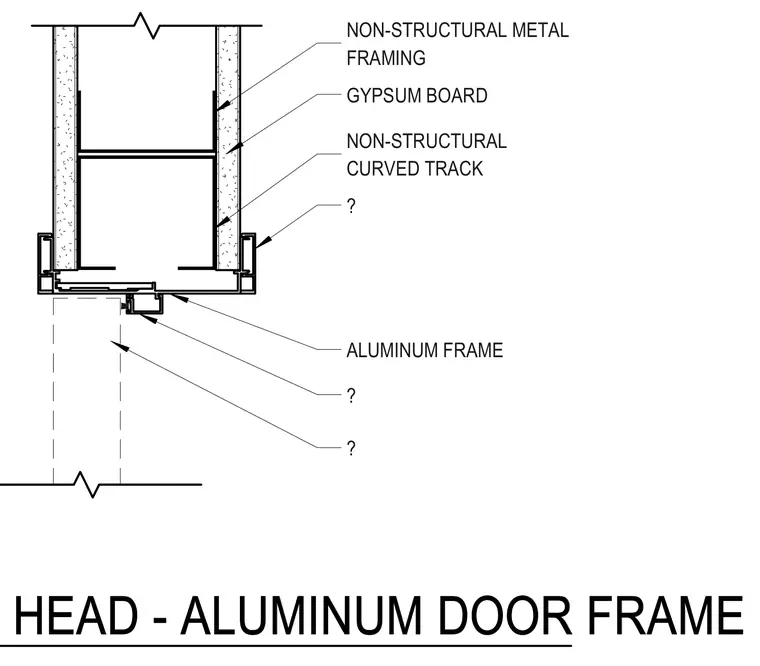

An aluminum door frame is anchored to a non-structural metal framing header with curved track and finished with gypsum board wall linings. The frame accommodates the door opening assembly within the partition wall.
GYPSUM BOARD ? ? ? ALUMINUM FRAME NON-STRUCTURAL CURVED TRACK NON-STRUCTURAL METAL FRAMING HEAD - ALUMINUM DOOR FRAME
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
