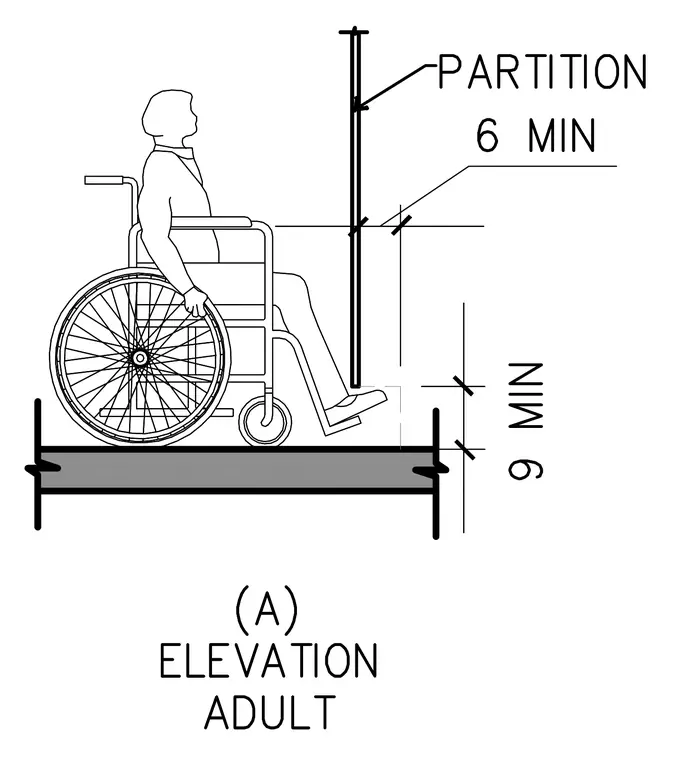

An adult in a wheelchair is positioned adjacent to a partition with a nine-inch minimum toe clearance height from the finished floor. The partition extends upward with a six-inch minimum dimension noted relative to the wheelchair armrest height.
