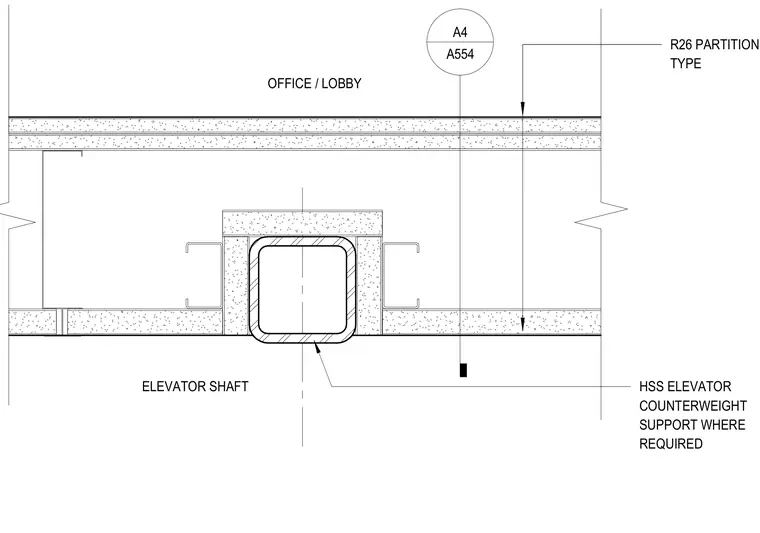

An hollow structural section elevator counterweight support is positioned within the elevator shaft where required. An R26 partition type separates the office lobby from the elevator shaft. The assembly incorporates metal studs and gypsum board layers on both sides of the partition.
HSS ELEVATOR COUNTERWEIGHT SUPPORT WHERE REQUIRED ELEVATOR SHAFT OFFICE / LOBBY R26 PARTITION TYPE A4 A554
