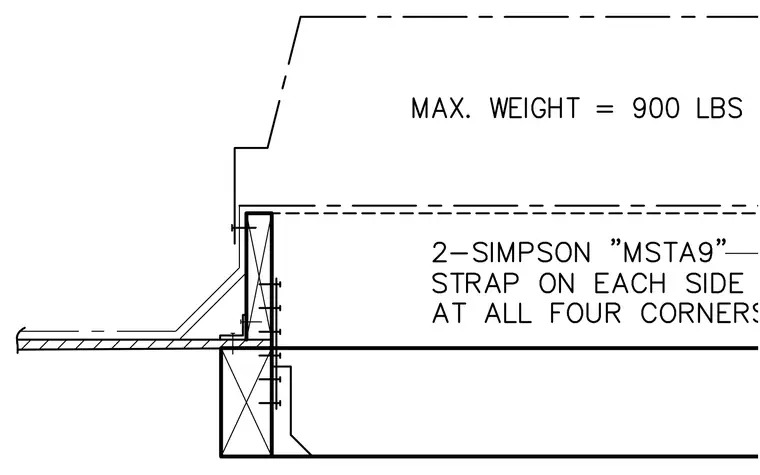

An exhaust fan platform detail supports a maximum weight of nine hundred pounds. The assembly utilizes two Simpson MSTA9 straps on each side at all four corners for secure attachment.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
