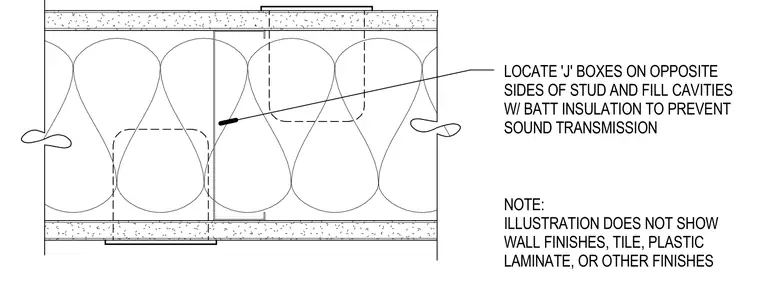

Junction boxes are located on opposite sides of the stud in a framed wall assembly to maintain acoustic separation. The wall cavities are filled with batt insulation to prevent sound transmission between adjacent spaces. Wall finishes, tile, plastic laminate, or other finishes are omitted from this illustration.
LOCATE 'J' BOXES ON OPPOSITE SIDES OF STUD AND FILL CAVITIES W/ BATT INSULATION TO PREVENT SOUND TRANSMISSION NOTE: ILLUSTRATION DOES NOT SHOW WALL FINISHES, TILE, PLASTIC LAMINATE, OR OTHER FINISHES
