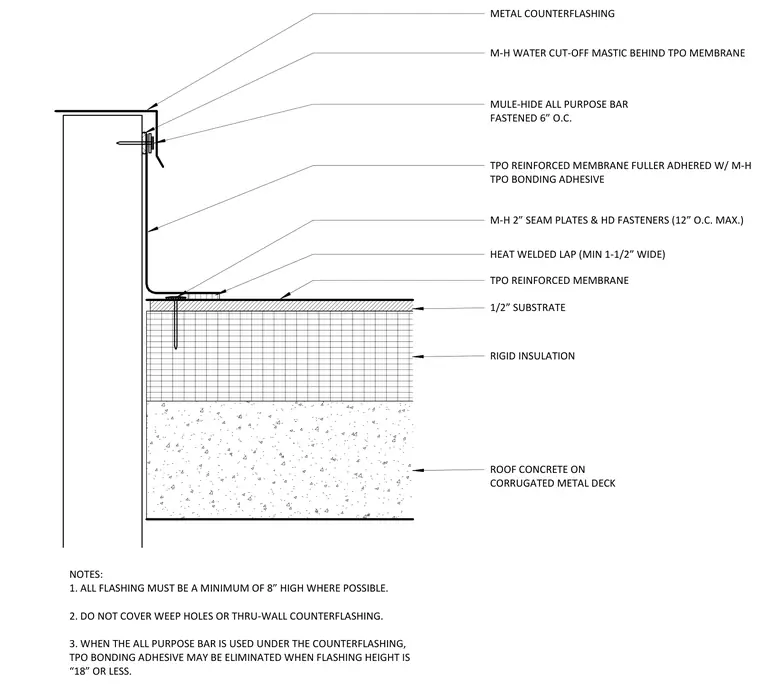

A reinforced thermoplastic polyolefin roof membrane is adhered to a half-inch substrate over rigid insulation and a concrete roof slab on corrugated metal deck. The vertical flashing membrane extends up the wall, sealed at the top with water cut-off mastic behind the membrane and clamped with a Mule-Hide all-purpose bar fastened at six inches on center. A metal counterflashing laps over the top of the membrane termination to shed water. Horizontal membrane seams are heat-welded with a minimum one-and-a-half-inch lap width and secured using two-inch seam plates with heavy-duty fasteners spaced at a maximum of twelve inches on center.
ROOF CONCRETE ON CORRUGATED METAL DECK RIGID INSULATION TPO REINFORCED MEMBRANE 1/2” SUBSTRATE HEAT WELDED LAP (MIN 1-1/2” WIDE) TPO REINFORCED MEMBRANE FULLER ADHERED W/ M-H TPO BONDING ADHESIVE M-H 2” SEAM PLATES & HD FASTENERS (12” O.C. MAX.) METAL COUNTERFLASHING M-H WATER CUT-OFF MASTIC BEHIND TPO MEMBRANE MULE-HIDE ALL PURPOSE BAR FASTENED 6” O.C. NOTES: 1. ALL FLASHING MUST BE A MINIMUM OF 8” HIGH WHERE POSSIBLE. 2. DO NOT COVER WEEP HOLES OR THRU-WALL COUNTERFLASHING. 3. WHEN THE ALL PURPOSE BAR IS USED UNDER THE COUNTERFLASHING, TPO BONDING ADHESIVE MAY BE ELIMINATED WHEN FLASHING HEIGHT IS “18” OR LESS.
