Architectural · A-QA8XH

Detail

Units: metric
Sheet: A-MB-9.01
Discipline: Architectural

Materials

Concrete Reinforced Concrete

Elements

Beams Columns Foundations / Footings

Text on the drawing

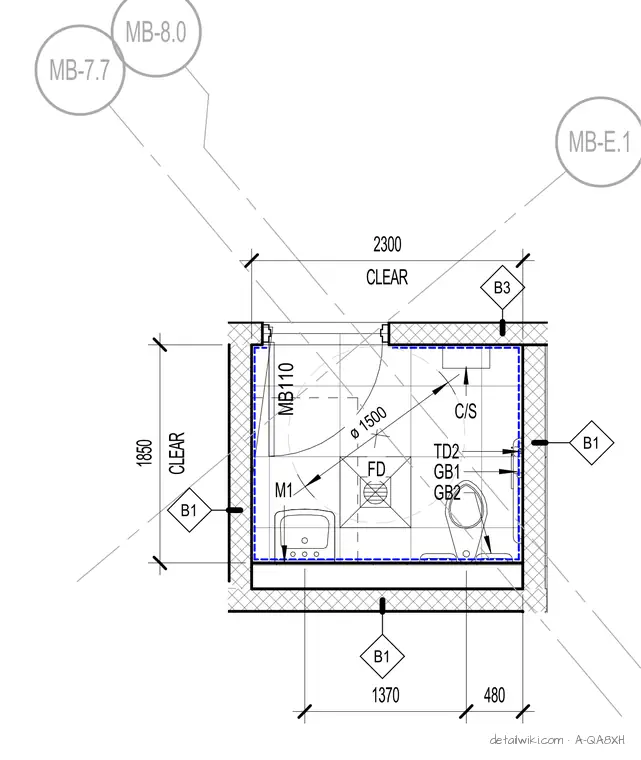

MB-8.0 MB-E.1 MB-7.7 MB110 B1 B1 CLEAR 2300 GB1 TD2 GB2 M1 FD B1 B3 ø 1500 C/S CLEAR 1850 1370 480
