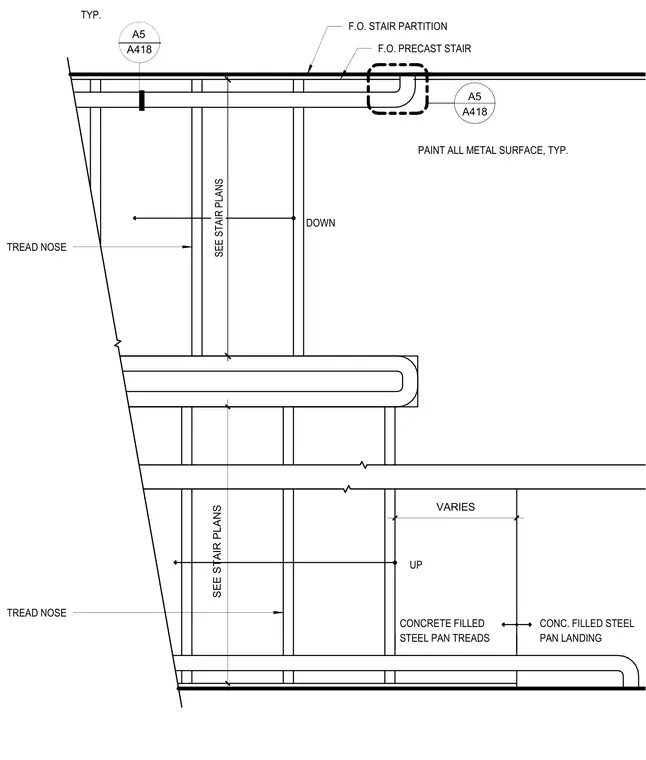

Precast stair assemblies connect to adjacent stair partitions with standard finish-to-finish clearances per stair plans. Concrete-filled steel pan treads and landings provide the walking surface, with tread nosing aligned throughout the run. All exposed metal surfaces receive a protective paint finish.
SEE STAIR PLANS F.O. STAIR PARTITION F.O. PRECAST STAIR PAINT ALL METAL SURFACE, TYP. CONCRETE FILLED STEEL PAN TREADS CONC. FILLED STEEL PAN LANDING DOWN UP TREAD NOSE TREAD NOSE TYP. VARIES A418 A5 A5 A418 ______ S E E S T A I R P L A N S
