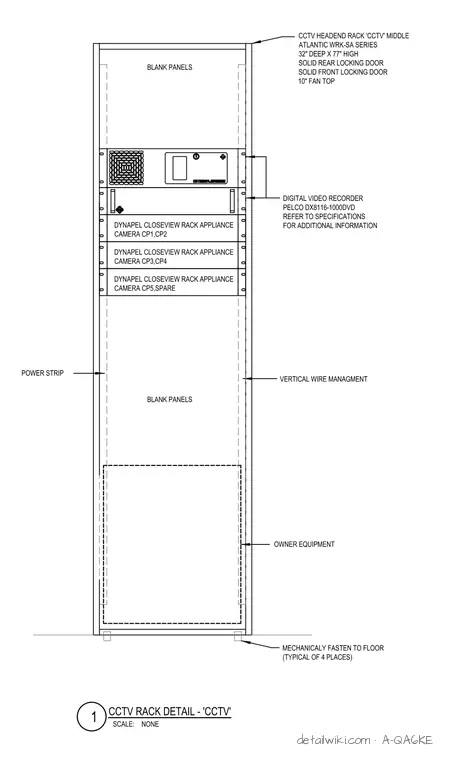

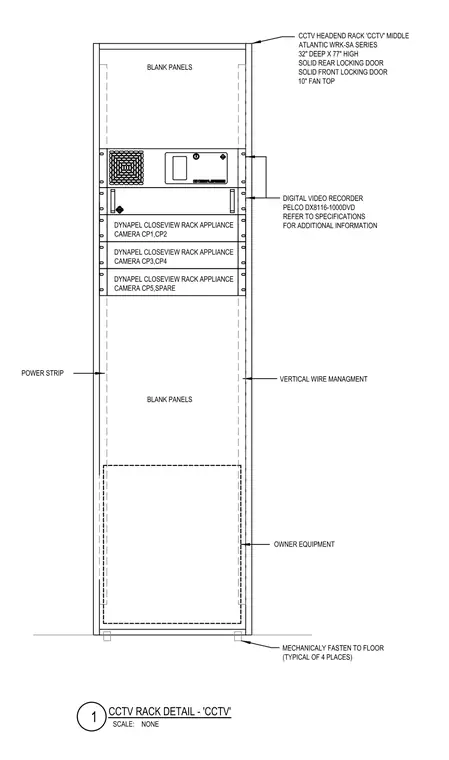

This elevation detail shows a CCTV headend rack from the Atlantic WRK-SA series measuring thirty-two inches deep by seventy-seven inches high, equipped with a solid rear locking door, solid front locking door, and a ten-inch fan top. Blank panels fill the upper and lower sections while housing a digital video recorder, three Dynapel Closeview rack appliances for camera connections, and designated owner equipment space. Vertical wire management channels run along the sides alongside an internal power strip. The unit is mechanically fastened to the floor at four typical locations.
