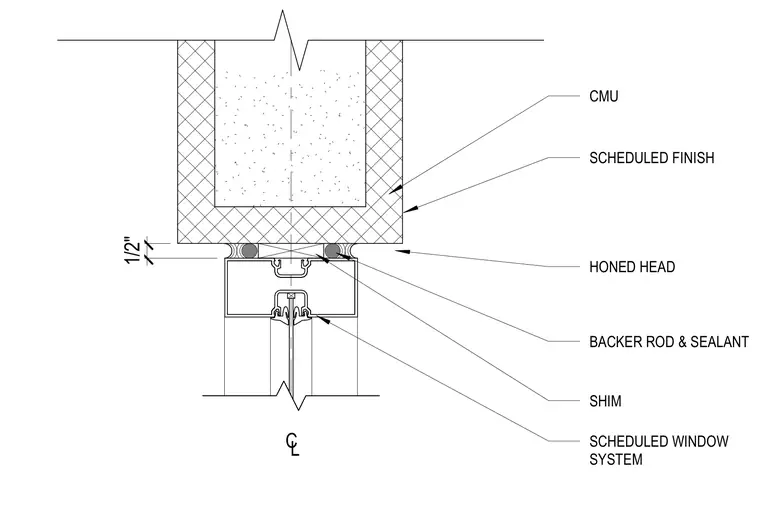

A scheduled window system sits beneath a concrete masonry unit wall header with a one-half inch gap for shimming. The joint between the masonry and the window head is sealed with backer rod and sealant. The masonry assembly includes a scheduled finish and a honed head profile.
CMU BACKER ROD & SEALANT SCHEDULED WINDOW SYSTEM SCHEDULED FINISH HONED HEAD CL 1/2" SHIM
