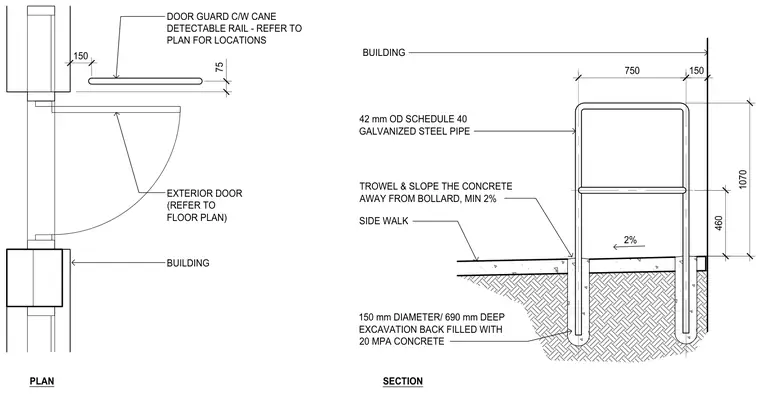

An exterior door guard with a cane detectable rail is positioned adjacent to an exterior building door with a 150 millimeter clearance from the building face. The guard is constructed from forty-two millimeter outside diameter Schedule 40 galvanized steel pipe. The vertical supports extend down into a one hundred fifty millimeter diameter by six hundred ninety millimeter deep excavation backfilled with 20 megapascal concrete. The surrounding concrete sidewalk is troweled and sloped away from the bollard with a minimum two percent slope.
BUILDING EXTERIOR DOOR (REFER TO FLOOR PLAN) DOOR GUARD C/W CANE DETECTABLE RAIL - REFER TO PLAN FOR LOCATIONS 2% SIDE WALK BUILDING 1070 150 75 460 750 42 mm OD SCHEDULE 40 GALVANIZED STEEL PIPE TROWEL & SLOPE THE CONCRETE AWAY FROM BOLLARD, MIN 2% 150 mm DIAMETER/ 690 mm DEEP EXCAVATION BACK FILLED WITH 20 MPA CONCRETE 150 PLAN SECTION
