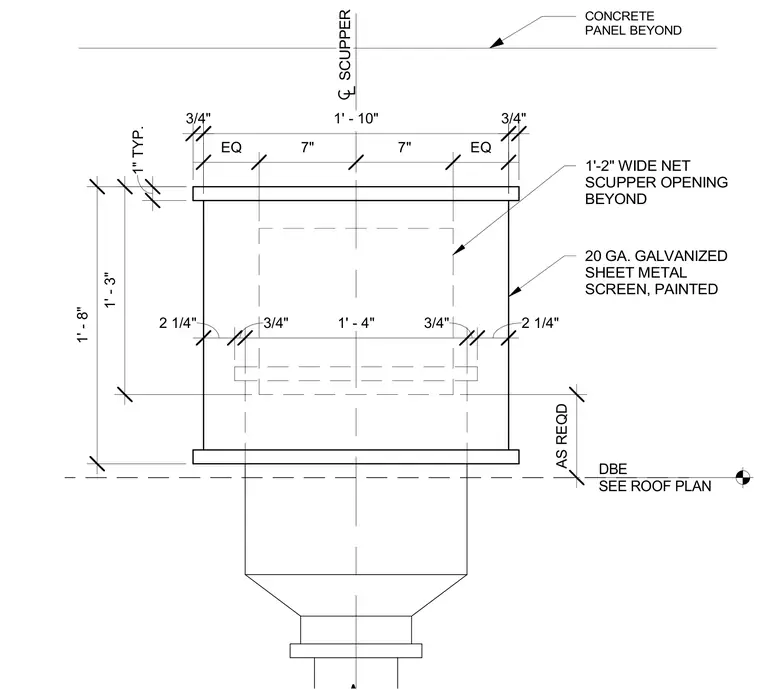

A painted twenty gauge galvanized sheet metal screen covers a one-foot two-inch wide net scupper opening beyond. The assembly is centered on a concrete panel shown beyond, with dimensions indicating a total screen height of one foot eight inches and width of one foot ten inches. A scupper opening as required discharges into a downspout system sized per roof plan.
1'-2" WIDE NET SCUPPER OPENING BEYOND 3/4" 3/4" 1' - 10" EQ 7" 7" EQ 1" TYP. 1' - 8" 20 GA. GALVANIZED SHEET METAL SCREEN, PAINTED SCUPPER AS REQD CONCRETE PANEL BEYOND 2 1/4" 3/4" 1' - 4" 3/4" 2 1/4" DBE SEE ROOF PLAN 1' - 3"
