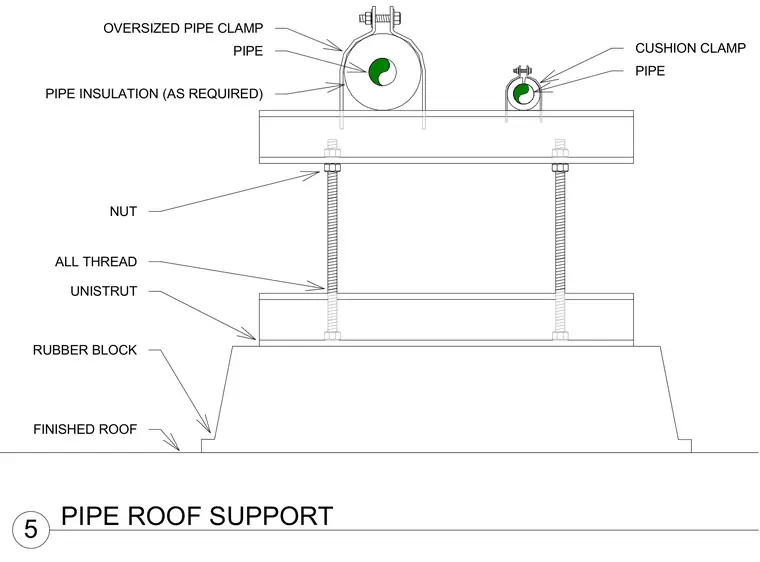

The assembly is supported by a rubber block resting on the finished roof surface. A Unistrut channel sits above the rubber block, anchored by all-thread rods secured with nuts. An upper Unistrut channel is mounted to the top of the all-thread rods and secured with additional nuts. Pipes are mounted to the upper channel using oversized pipe clamps with optional pipe insulation, as well as smaller pipes using cushion clamps.
PIPE INSULATION (AS REQUIRED) PIPE OVERSIZED PIPE CLAMP ALL THREAD NUT UNISTRUT RUBBER BLOCK PIPE CUSHION CLAMP FINISHED ROOF 5 PIPE ROOF SUPPORT
