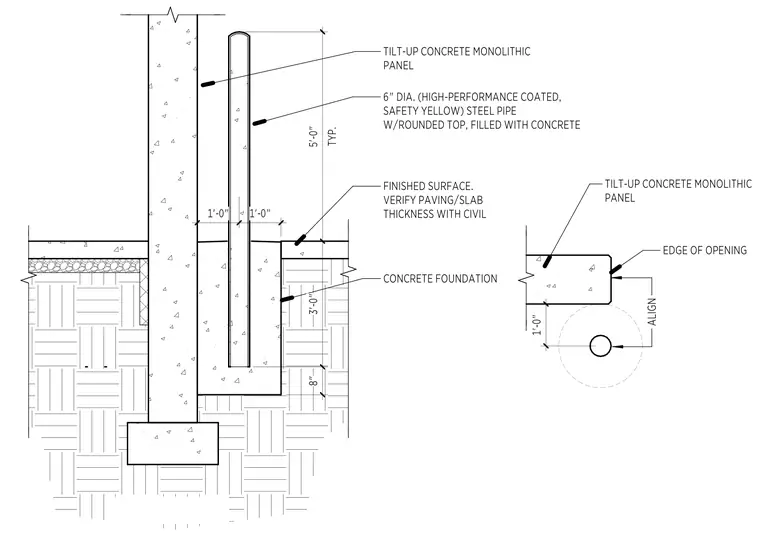

This assembly consists of a six-inch diameter high-performance coated safety yellow steel pipe bollard with a rounded top, filled with concrete. The bollard is embedded three feet into a dedicated concrete foundation, extending five feet above the finished surface. The foundation is positioned adjacent to a tilt-up concrete monolithic panel, with the bollard center aligned to the edge of the panel opening. The finished surface elevation and paving or slab thickness must be verified with civil engineering documents.
