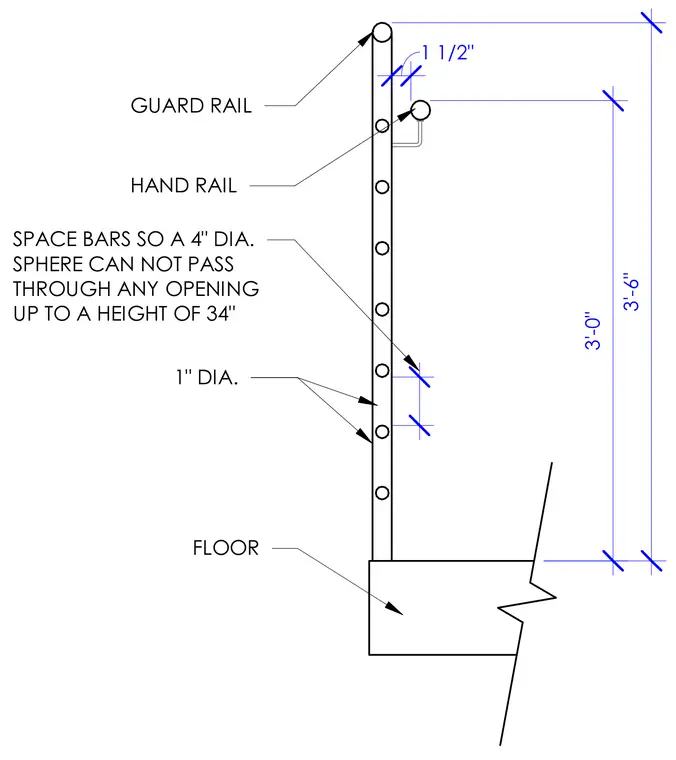

A guardrail and handrail assembly mounts to a concrete floor slab with vertical members spaced to prevent the passage of a four-inch diameter sphere up to a height of thirty-four inches. The guardrail stands at a height of three feet six inches, while the handrail is positioned at three feet above the floor. Intermediate bars measure one inch in diameter with one-and-a-half-inch spacing.
FLOOR HAND RAIL GUARD RAIL SPACE BARS SO A 4" DIA. SPHERE CAN NOT PASS THROUGH ANY OPENING UP TO A HEIGHT OF 34" 3'-0" 3'-6" 1" DIA. 1 1/2" 4 O O o o 1 o o o 4
