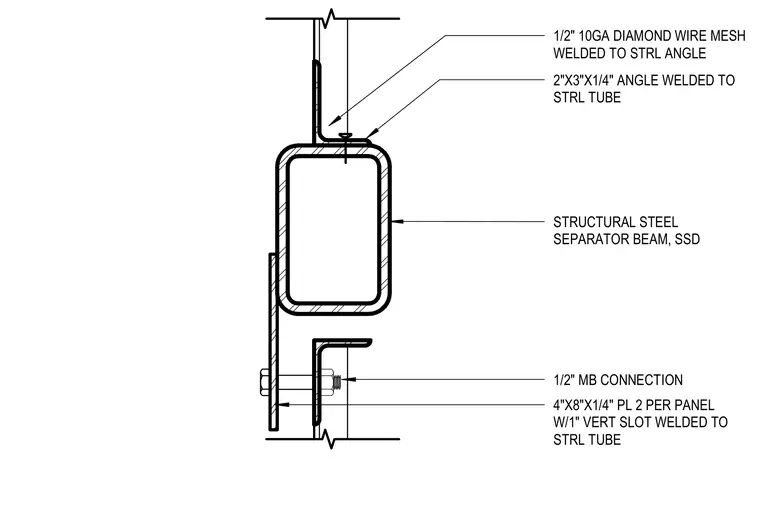

A 1/2-inch 10-gauge diamond wire mesh is welded to a structural steel angle, which is secured to a 2-inch by 3-inch by 1/4-inch structural steel angle welded to a 4-inch by 8-inch by 1/4-inch structural steel tube separator beam. Two 4-inch by 8-inch by 1/4-inch plates per panel, featuring a 1-inch vertical slot, are welded to the structural steel tube and connected via a 1/2-inch machine bolt connection.
1/2" 10GA DIAMOND WIRE MESH WELDED TO STRL ANGLE 1/2" MB CONNECTION STRUCTURAL STEEL SEPARATOR BEAM, SSD 2"X3"X1/4" ANGLE WELDED TO STRL TUBE 4"X8"X1/4" PL 2 PER PANEL W/1" VERT SLOT WELDED TO STRL TUBE
