Rated Shaft Wall Partition Top Track at Metal Deck

Materials

Gypsum / Drywall

Elements

Walls Partitions Decks Anchors / Embeds

Connections

Embed Plate

About this detail

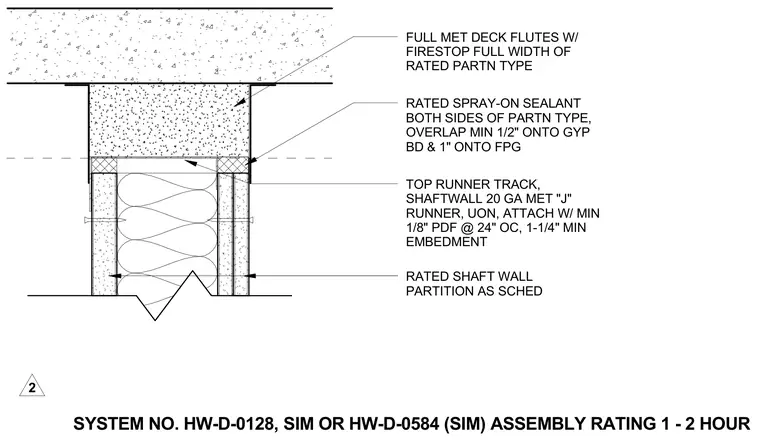

A rated shaft wall partition terminates at a metal deck with a twenty-gauge metal J runner track attached using minimum one-eighth-inch powder-driven fasteners spaced at twenty-four inches on center with one-and-one-quarter-inch minimum embedment. Full metal deck flutes receive firestop material across the full width of the rated partition type. Rated spray-on sealant is applied to both sides of the partition, overlapping a minimum of one-half inch onto the gypsum board and one inch onto the fireproofing system in accordance with UL system number HW-D-0128 or HW-D-0584.
