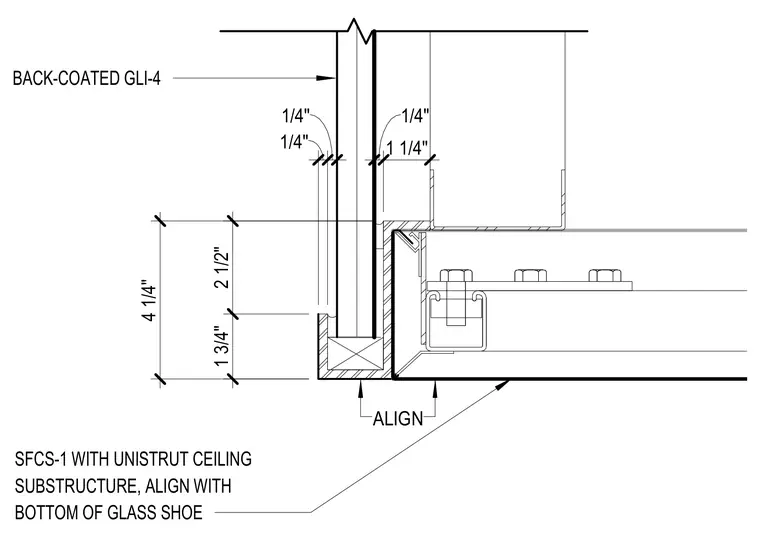

An interior glass partition assembly interfaces with a Unistrut ceiling substructure and a glass shoe channel. The back-coated GLI-4 glass panel aligns with the bottom of the glass shoe. The Unistrut framing member ties into the ceiling substrate and aligns with the glass shoe assembly. Dimensional clearances include a 4-1/4 inch overall height with a 2-1/2 inch dimension above a 1-3/4 inch dimension.
S F C S - 1 W I T H U N I S T R U T C E I L I N G S U B S T R U C T U R E , A L I G N W I T H B O T T O M O F G L A S S S H O E B A C K - C O A T E D G L I - 4 ALIGN 4 1 / 4 " 1 1 / 4 " 1 / 4 " 1 3 / 4 " 2 1 / 2 " 1 / 4 " 1 / 4 "
