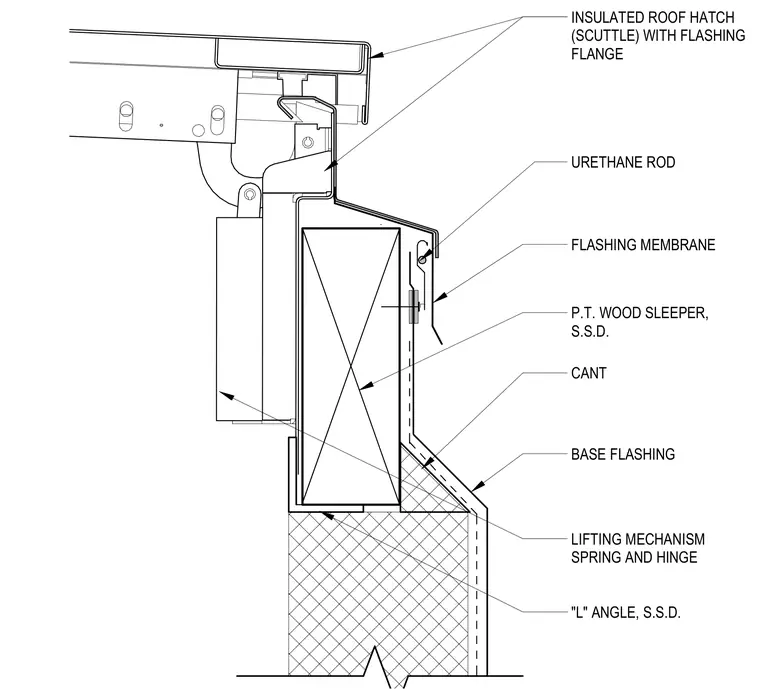

An insulated roof hatch scuttle rests on a pressure-treated wood sleeper supported by a stainless steel angle. A continuous base flashing extends up over a cant strip and under a flashing membrane secured with a urethane rod. The hatch lid features an integrated flashing flange, lifting mechanism, spring, and hinge assembly.
INSULATED ROOF HATCH (SCUTTLE) WITH FLASHING FLANGE URETHANE ROD LIFTING MECHANISM SPRING AND HINGE "L" ANGLE, S.S.D. FLASHING MEMBRANE CANT BASE FLASHING P.T. WOOD SLEEPER, S.S.D.
