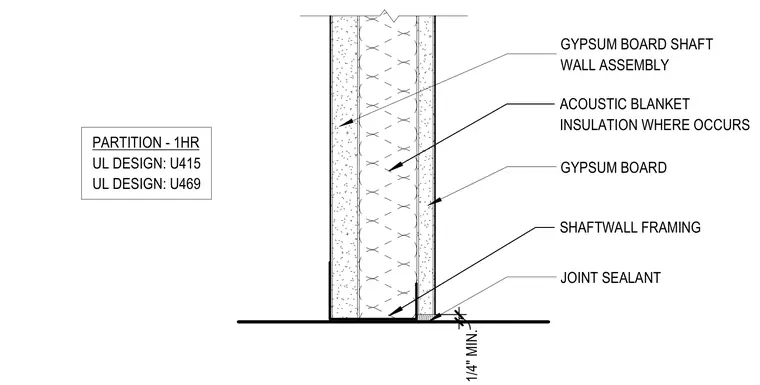

This one-hour rated shaft wall partition assembly features shaftwall framing enclosed by layers of gypsum board on both sides. Acoustic blanket insulation is installed within the cavity where required. A minimum one-quarter inch joint sealant is applied at the base of the partition.
PARTITION - 1HR UL DESIGN: U415 UL DESIGN: U469 1 / 4 " M I N . JOINT SEALANT GYPSUM BOARD SHAFT WALL ASSEMBLY GYPSUM BOARD ACOUSTIC BLANKET INSULATION WHERE OCCURS SHAFTWALL FRAMING
