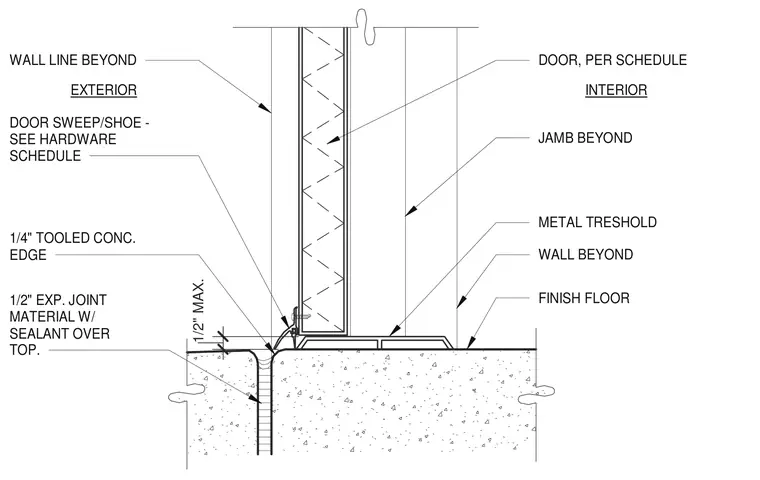

This threshold assembly sits on a concrete slab and features a metal threshold resting above the interior finish floor. An exterior expansion joint with a half-inch of joint material and sealant is set into a one-quarter-inch tooled concrete edge. A door sweep and shoe attach to the hollow metal door, which aligns with the wall above. Jambs and walls extend beyond the primary section.
EXTERIOR INTERIOR FINISH FLOOR 1/4" TOOLED CONC. EDGE WALL BEYOND METAL TRESHOLD DOOR SWEEP/SHOE - SEE HARDWARE SCHEDULE JAMB BEYOND DOOR, PER SCHEDULE 1/2" MAX. WALL LINE BEYOND 1/2" EXP. JOINT MATERIAL W/ SEALANT OVER TOP.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
