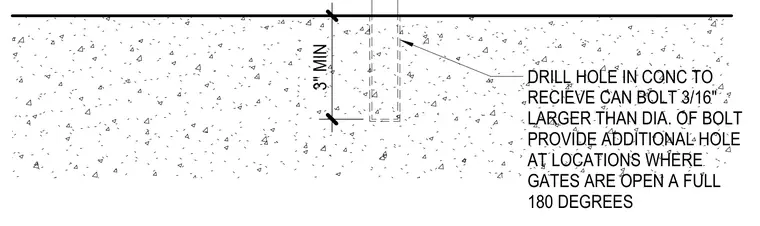

A cane bolt drop-in anchor hole is detailed for a concrete slab with a minimum drill depth of three inches. The drilled hole diameter is sized three-sixteenths of an inch larger than the diameter of the bolt. An additional hole is provided at locations where gates open a full one hundred eighty degrees.
3" MIN DRILL HOLE IN CONC TO RECIEVE CAN BOLT 3/16" LARGER THAN DIA. OF BOLT PROVIDE ADDITIONAL HOLE AT LOCATIONS WHERE GATES ARE OPEN A FULL 180 DEGREES
