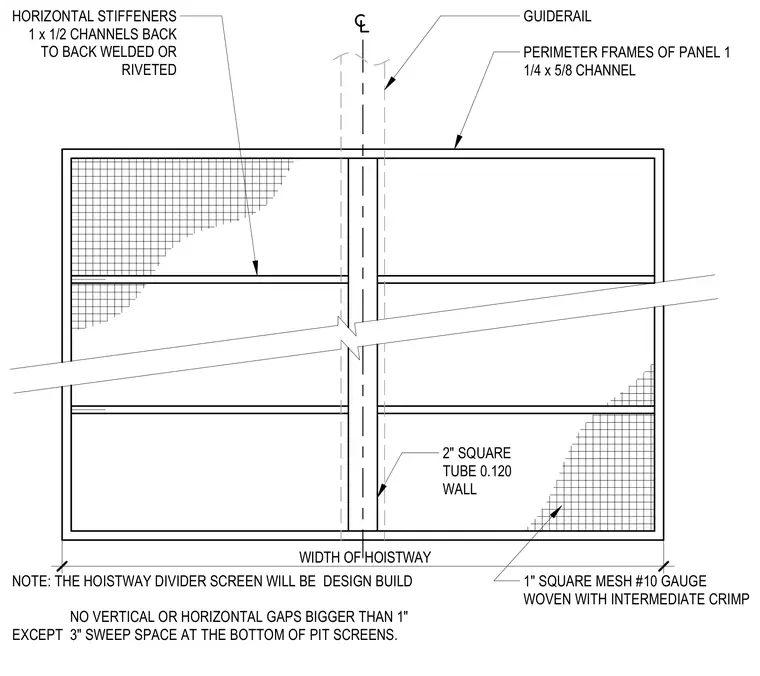

An elevator hoistway divider screen features perimeter panel frames constructed from one-quarter by five-eighths inch channels and a central two-inch square tube with a zero point one twenty wall thickness. The infill consists of a one-inch square mesh of ten gauge wire, woven with intermediate crimps. Horizontal stiffeners utilize one by one-half inch channels placed back to back and secured by welding or riveting. The assembly is designed to maintain a maximum gap size of one inch, excluding a three-inch sweep space at the bottom of pit screens.
WIDTH OF HOISTWAY PERIMETER FRAMES OF PANEL 1 1/4 x 5/8 CHANNEL GUIDERAIL 1" SQUARE MESH #10 GAUGE WOVEN WITH INTERMEDIATE CRIMP 2" SQUARE TUBE 0.120 WALL HORIZONTAL STIFFENERS 1 x 1/2 CHANNELS BACK TO BACK WELDED OR RIVETED NOTE: THE HOISTWAY DIVIDER SCREEN WILL BE DESIGN BUILD NO VERTICAL OR HORIZONTAL GAPS BIGGER THAN 1" EXCEPT 3" SWEEP SPACE AT THE BOTTOM OF PIT SCREENS.
